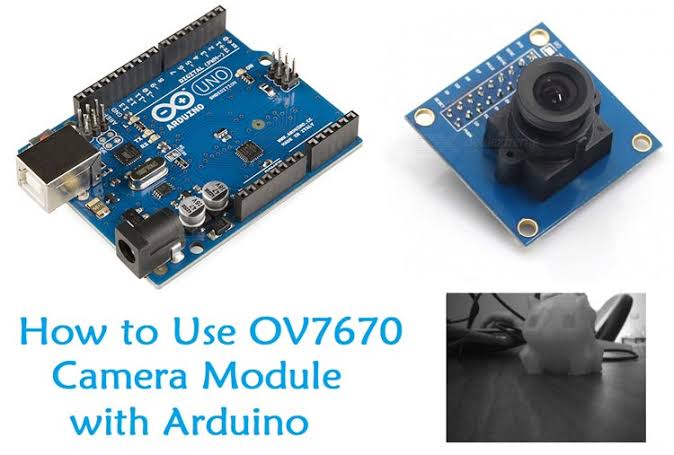

Arduino Camera

OV7670 image sensor which is small size and low operating voltage, providing single-chip VGA camera and image processor for all functions. Controlled by SCCB bus, 8-bit image data of various resolutions can be output by whole frame, sub-sampling, window fetching, etc. Products VGA images up to 30 frames / sec. Users can fully control the image quality, data formats and transmission. All image processing functions including gamma curve process, white balance, saturation, hue and so on through the SCCB interface programming.

Features:

1. High sensitivity suitable for illumination applications.
2. Low voltage suitable for embedded applications.
3. Standard SCCB interface compatible with I2C interface.
4. RawRGB, RGB (GRB4: 2:2, RGB565/555/444), YUV (4:2:2) and YCbCr (4:2:2) output format.
5. Supports VGA, CIF, and from a variety of sizes CIF to 40×30.
6. VarioPixel sub-sampling mode.
7. Auto affect the control features include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination light stripes, automatic black level calibration image quality controls including color saturation, hue, gamma, sharpness ANTI_BLOOM.
8. ISP has a compensation function to eliminate noise and dead pixels.
9. Support for image scaling.
10. Compensation for loss of optical lens.
11. 50/60Hz automatic detection.
12. Saturation automatically adjust (UV adjustment).
13. Automatically adjust edge enhancement.
14. Noise Reduction automatically adjust.

Specification:
Photosensitive array: 640X480
IO Voltage: 2.5V to 3.0V (internal LDO for nuclear power 1.8V)
Power operation: 60mW/15fpsVGAYUV
Sleep: <20uA
Temperature Operating: -30 ℃ to 70 ℃
Stable operating: 0 ℃ to 50 ℃
Output format (8-bit): YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical dimension: 1/6″
Viewing Angle: 25 °
Max framerate: 30fps VGA
Sensitivity: 1.3V / (Lux-sec)
SNR: 46 dB
Dynamic range: 52 dB
View Mode: progressive
Electronic Exposure: 1 line to 510 line
Pixel Size: 3.6um x 3.6um
Dark current: 12 mV / s at 60 ℃

Product Size: 3.8 * 3.8 * 3.3mm / 0.1 * 0.1 * 0.1in

Module Pin Definition:
GDN—Ground pin
SIO_C–Control clock of SCCB interface (note: some low-level MCU needs pull-up control, ilar to the I2C interface)
SIO_D—Serial data input (output) of SCCB interface (note: some low-level MCU needs pull-up control, ilar to the I2C interface)
VSYNC–Frame synchronous signal (output signal)
HREF—Line synchronous signal (output signal)
PCLK—Pixel clock (output signal)
D0-D7–Data port (output signal)
RESET—Reset port (normal use pull-up)
PWDN–Power selection mode (normal use pull-down)

Package List:

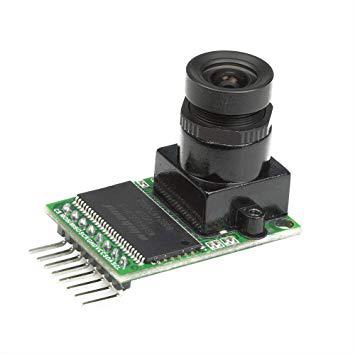

1 x OV7670 Camera Module
